Essential Components of CNC Lathes and Their Maintenance

What is a CNC lathe?

CNC lathes and machining centers represent highly precise and efficient automatic machine tools. These machines are equipped with multi-station turrets or power turrets, enabling a wide range of machining capabilities. They can handle tasks like turning linear and tilting cylinders, creating arcs, and producing complex workpieces with threads, grooves, worms, and more. CNC lathes find applications in various industries, offering interpolation and compensation functions that prove economically efficient for mass production of intricate parts.

"CNC" stands for computer numerical control. CNC machine tools automatically process parts according to pre-programmed machining instructions. These instructions encompass details of the machining route, process parameters, tool paths, displacements, cutting parameters (such as spindle rotation, feed rates, etc.), and auxiliary functions (like tool changes, spindle direction, cutting fluid control, and more). To program a CNC machine, the machinist or engineer specifies these instructions in a format that the CNC machine understands, which is then stored on a control medium (e.g., perforated paper tape, magnetic tape, magnetic disks, or magnetic bubble memory). The program is then fed into the CNC machine, guiding it through the part's production.

The complete process from analysis to the creation of production control media is referred to as NC program preparation. What distinguishes a CNC machine from a conventional machine is that CNC machines automatically execute operations based on programmed instructions, while conventional machines require human operators. CNC machines offer the flexibility to change programs, allowing the same machine to produce various parts. As a result, CNC machines are particularly well-suited for handling small batches and creating complex, high-precision components.

Given the need for a pre-programmed sequence, CNC machines operate efficiently when the programmer compiles the program, feeds it into the CNC machine, and initiates the machining process. The program input is facilitated through a control medium.

Components of a CNC Lathe and Their Maintenance

Hydraulic Chuck and Hydraulic Tailstock:

Hydraulic chucks are pivotal for clamping workpieces in CNC turning processes. They are usually suitable for most rotary parts.

For non-cylindrical clamping or processing parts that require spring chucks, specialized chucks may be necessary.

In cases where the ratio of axial to radial dimensions of the part is significant, a hydraulic tailstock with real-time centering can support the part's tail end to ensure proper handling. There are ordinary hydraulic tailstocks and programmable hydraulic tailstocks for this purpose.

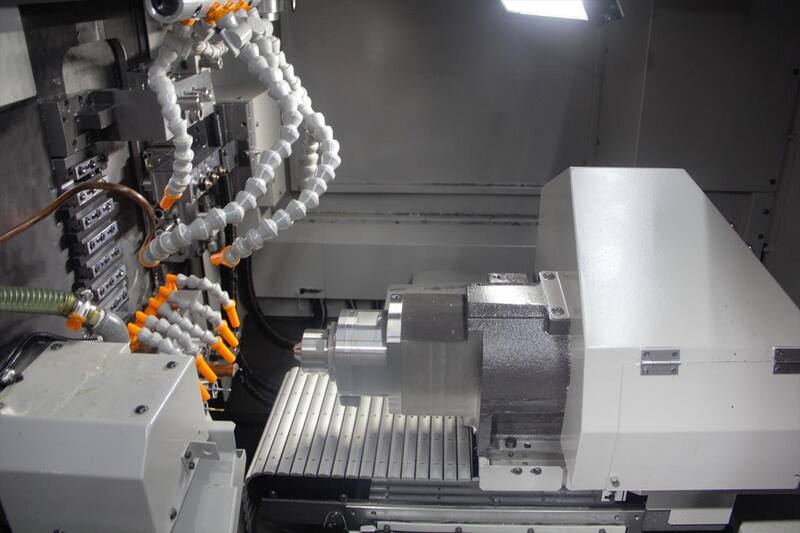

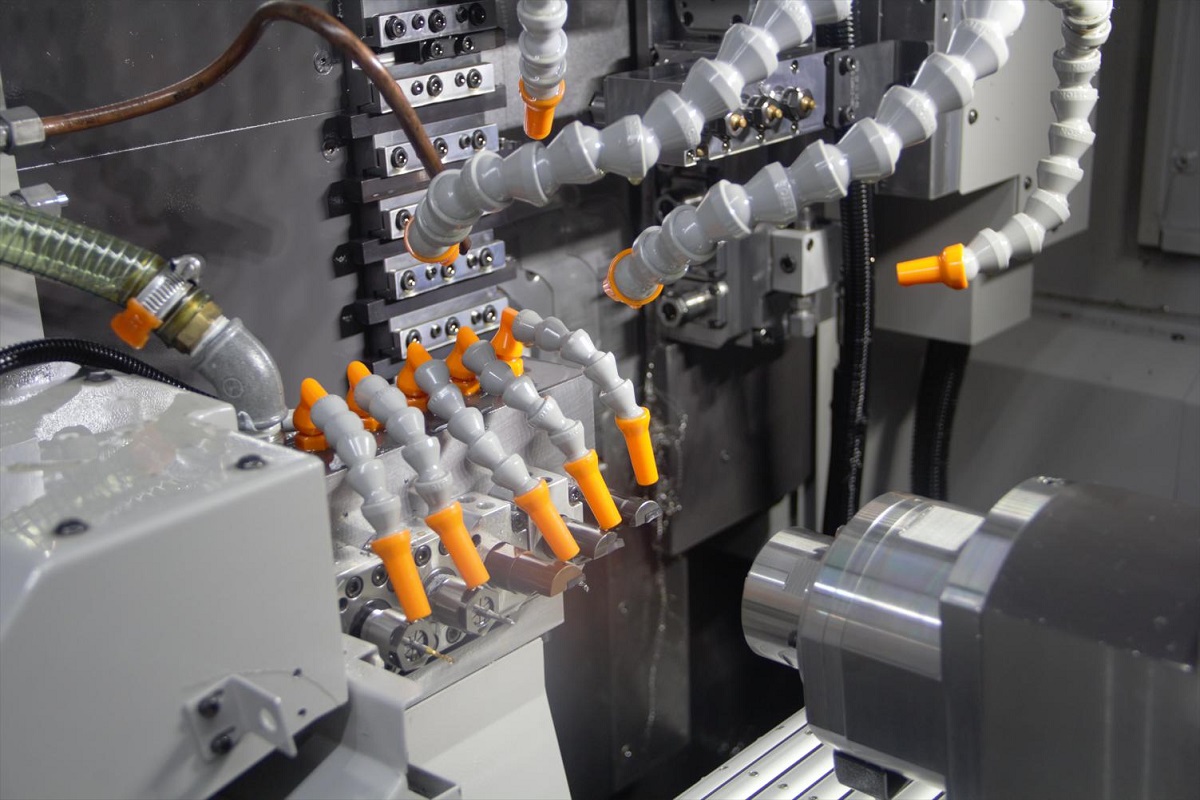

Tool Holders for CNC Lathes:

CNC lathes can employ two types of tool holders:

Special tool holders are designed by the lathe manufacturer and are tailored for specific applications, making them cost-effective but less versatile.

Universal tool holders adhere to common standards (e.g., VDI, Association of German Engineers) and can be configured based on the CNC lathe's functional needs.

Milling Power:

Adding a milling power head to the CNC lathe's tool holder significantly expands its processing capabilities, allowing operations like axial drilling and milling of axial slots.

CNC Lathe Cutting Tools:

When turning parts on a CNC lathe, it's important to organize the tool holders optimally, considering the lathe's tool holder structure and the number of tools it can accommodate. This helps avoid interference issues between the machine, tools, and workpieces.

Maintenance of CNC Machine Tools:

CNC machine tools require specialized maintenance compared to conventional machine tools. They demand a high level of precision and reliability, making maintenance a critical aspect of their operation. Maintenance personnel should possess a deep understanding of mechanics, processing technology, hydraulics, electronics, automation, control systems, and measurement technology.
