Factors Affecting Dimensional Accuracy of Stamping Parts and Solutions

Stamping is a widely used manufacturing process in various industries, including new energy, automotive, aerospace, home appliances, and electrical heating systems. It involves transforming metal sheets into desired shapes using specialized machines and dies. However, ensuring the dimensional accuracy of stamped parts can be challenging due to several influencing factors. In this article, we will explore the key factors that affect the accuracy of stamping parts and discuss solutions to address these issues.

Material Properties

The material used in stamping plays a critical role in determining the dimensional accuracy of the final product. Variations in the hardness, thickness, and ductility of the metal can lead to inconsistencies during the stamping process. For instance, softer materials may deform more easily, while harder materials may cause excessive wear on the dies, leading to inaccuracies in the stamped parts.

Solution:

To mitigate these issues, it is essential to choose materials with consistent properties, specifically designed for stamping processes. Proper material selection based on mechanical properties such as hardness and ductility ensures better control over dimensional precision. Conducting regular quality checks on material batches is also crucial.

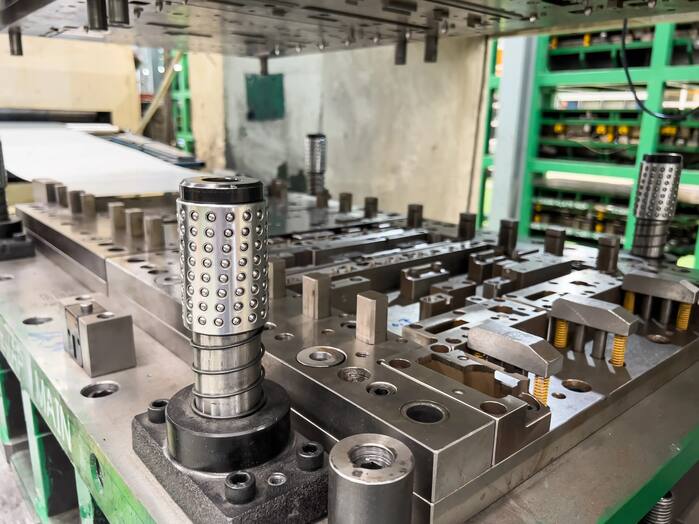

Die Design and Manufacturing

The accuracy of stamped parts is heavily dependent on the quality of the dies used in the process. Poor die design or manufacturing defects can lead to inaccuracies such as burrs, warping, or dimensional deviations. A well-designed die must account for material properties, required tolerances, and the specific geometry of the part.

Solution:

Investing in high-precision die design and manufacturing processes is essential. Using advanced simulation software can help predict potential issues before the actual production begins. Additionally, performing regular maintenance on the dies, such as polishing and aligning, helps maintain their accuracy over time.

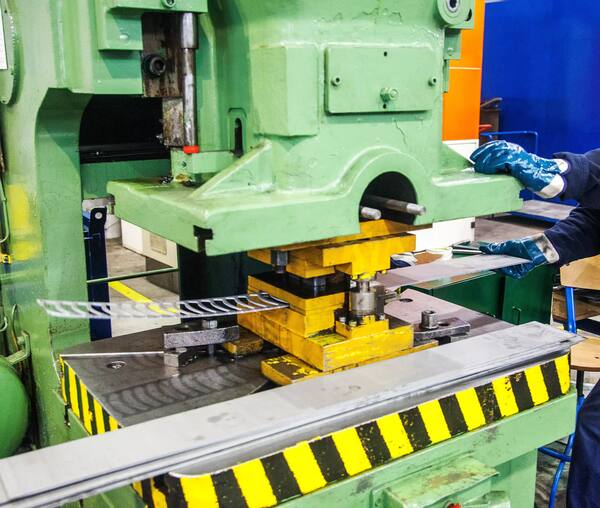

Press Machine Precision

The precision of the press machine used in the stamping process is another key factor that influences the accuracy of stamped parts. Variations in machine settings, such as press force and stroke length, can lead to dimensional deviations in the finished parts. Moreover, machine wear and tear over time can affect its ability to consistently produce precise parts.

Solution:

Regular calibration of the press machines is critical to ensure they operate within the required tolerances. Implementing automated monitoring systems that track press force and stroke length in real time can help detect and correct deviations during the stamping process. Routine maintenance of the machines also ensures long-term accuracy and reliability.

Springback Effect

One of the most common challenges in stamping is the springback effect, where the metal tends to return to its original shape after being bent or formed. This can result in dimensional inaccuracies, especially in high-strength materials like stainless steel and aluminum alloys. The amount of springback is influenced by material properties, part geometry, and the stamping process itself.

Solution:

To minimize the springback effect, it is important to compensate for it in the die design by incorporating adjustments in the geometry to account for the expected deformation. Using materials with lower elastic recovery or applying post-forming techniques, such as annealing, can also reduce springback.

Lubrication and Friction

Friction between the metal sheet and the die during the stamping process can affect the accuracy of the part. High levels of friction can lead to uneven material flow, resulting in defects such as wrinkles, tears, or dimensional deviations. Inadequate lubrication can increase wear on the die, further impacting the accuracy of the stamped parts.

Solution:

Proper lubrication is essential to ensure smooth material flow and reduce friction during stamping. Using high-quality lubricants designed for specific materials and processes can help maintain consistent dimensional accuracy. Additionally, regularly inspecting and maintaining lubrication systems ensures optimal performance.

Part Alignment and Handling

In the stamping process, precise alignment of the metal sheet and the die is crucial for achieving accurate dimensions. Misalignment can lead to uneven cutting, burrs, or even damaged parts. Handling of the stamped parts after production can also affect their dimensions if not done carefully.

Solution:

Automated handling systems with precise positioning controls can help ensure accurate alignment during the stamping process. Implementing robotic systems for part handling can further reduce the risk of human error and minimize dimensional variations caused by improper handling.

Ensuring the dimensional accuracy of stamped parts is critical for maintaining product quality and meeting industry standards in sectors such as automotive, new energy, home appliances, aerospace, and electrical heating systems. By addressing key factors such as material properties, die design, machine precision, springback, lubrication, and part alignment, HHC significantly improved the accuracy of stamping processes. Implementing these solutions leads to more reliable production, reduced waste, and better overall performance in precision manufacturing.
