Stamping Process and Die Design for Washers

Stamping is a critical manufacturing process for producing washers, widely used in various industries, including automotive, aerospace, electronics, and industrial machinery. The process transforms sheet metal into the precise dimensions required for washers through specialized equipment and tools. This article explores the stamping process for washers, focusing on the importance of die design and how it affects the final product quality.

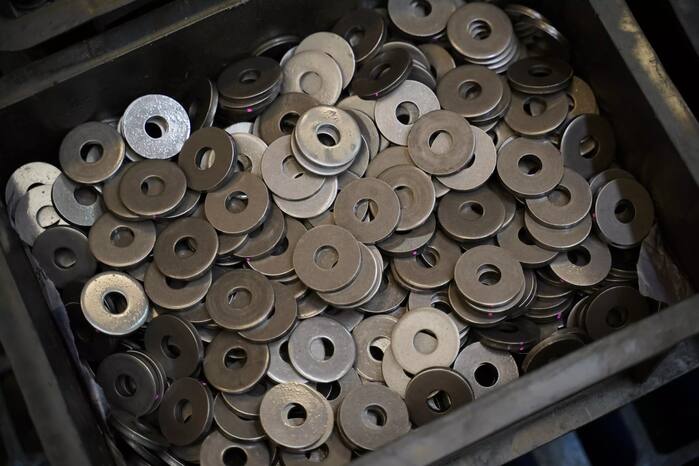

Overview of the Stamping Process for Washers

Washers are typically produced using a multi-stage stamping process that involves several key steps:

1.Blanking: The first step involves cutting a round or specific-shaped piece of metal from a sheet using a blanking die. The size and thickness of the washer are determined during this stage.

2.Piercing: After blanking, the washer's inner hole is created using a piercing die. The piercing process must be precise to ensure that the hole aligns perfectly with the washer's outer diameter, as this affects the washer's function in mechanical assemblies.

3.Drawing and Forming: Depending on the washer's design, additional steps such as drawing or forming may be required to achieve the final shape, particularly for washers with curves or complex geometries. This is done using a combination of forming dies.

4.Trimming and Finishing: After the stamping process, excess material may need to be trimmed, and edges may need smoothing for the final product to meet dimensional and surface finish requirements.

Throughout the entire stamping process, maintaining dimensional accuracy is crucial to ensure the washers meet specified tolerances. Small deviations in size can result in poor performance or even failure in critical applications, such as in engines or precision instruments.

Die Design for Washers

The design of the die is a key factor in determining the efficiency and precision of the stamping process for washers. Die design not only affects the washer's dimensional accuracy but also impacts the overall manufacturing speed, material utilization, and tool life. Key aspects of die design for washers include:

Material Selection for Dies:

Choosing the right material for the dies is essential to withstand the high pressures and repetitive cycles of stamping. For washer production, die materials such as high-carbon steel or tool steel are commonly used due to their hardness and wear resistance.

Die Clearance:

The clearance between the punch and die is a critical factor that affects the quality of the washer's cut edges and hole formation. If the clearance is too large, it can lead to burrs and poor edge quality. If the clearance is too small, excessive wear on the punch and die can occur. For washers, achieving the correct clearance ensures smooth edges and accurate hole placement.

Progressive Dies:

For high-volume production of washers, progressive dies are often used. These dies perform multiple operations, such as blanking, piercing, and forming, in a single stroke of the press. This increases efficiency and reduces the overall cost of production. In progressive die setups, ensuring precise alignment at every station is crucial to maintaining the quality of the washers.

Punch and Die Wear:

Over time, the punches and dies used in stamping will wear down due to repeated cycles of high-pressure forming. Regular maintenance and replacement are necessary to avoid defects such as burrs, dimensional inaccuracies, or warping of the washers. Proper heat treatment and surface finishing of the dies can prolong their service life, ensuring consistent production quality.

Lubrication:

To reduce friction between the metal sheet and the dies, lubrication is essential. Inadequate lubrication during the stamping process can lead to premature wear of the die, surface imperfections on the washers, or even tool failure. Using the right type of lubricant tailored to the material being stamped helps maintain die longevity and washer quality.

Key Challenges in Washer Stamping

Several challenges can arise during the stamping of washers, mainly related to maintaining dimensional accuracy and avoiding defects such as burrs, wrinkling, or warping. These issues are often linked to die design flaws or improper maintenance.

• Burrs: Excess material left on the edges after cutting can lead to poor part performance. Burr formation can be minimized by optimizing die clearance and regularly sharpening the cutting edges.

• Wrinkling: When forming complex shapes or deep-drawn washers, wrinkling can occur due to uneven material flow. Proper die design and controlling the blank-holding force can help mitigate this.

• Warpage: Uneven material distribution or excessive forming pressure can cause the washer to warp, affecting its fit and function in assemblies.

Solutions to Improve Washer Stamping Quality

To improve the quality and efficiency of the stamping process for washers, manufacturers can implement the following solutions:

• Precision Die Design: Invest in high-quality dies with proper material selection and clearance to ensure accuracy.

• Regular Maintenance: Periodically maintain and replace worn punches and dies to avoid quality issues.

• Advanced Simulation Tools: Utilize simulation software to optimize die design and predict potential issues in the stamping process before full-scale production.

• Automation: Automating certain aspects of the stamping process, such as material feeding and part handling, can improve consistency and reduce human error.

The stamping process and die design for washers are critical to producing high-quality, precise components used in a wide range of industries. By focusing on material selection, proper die clearance, and regular maintenance, HHC can ensure that our washers meet strict quality standards. As technology advances, utilizing progressive dies and automation further enhances the efficiency of washer production.
