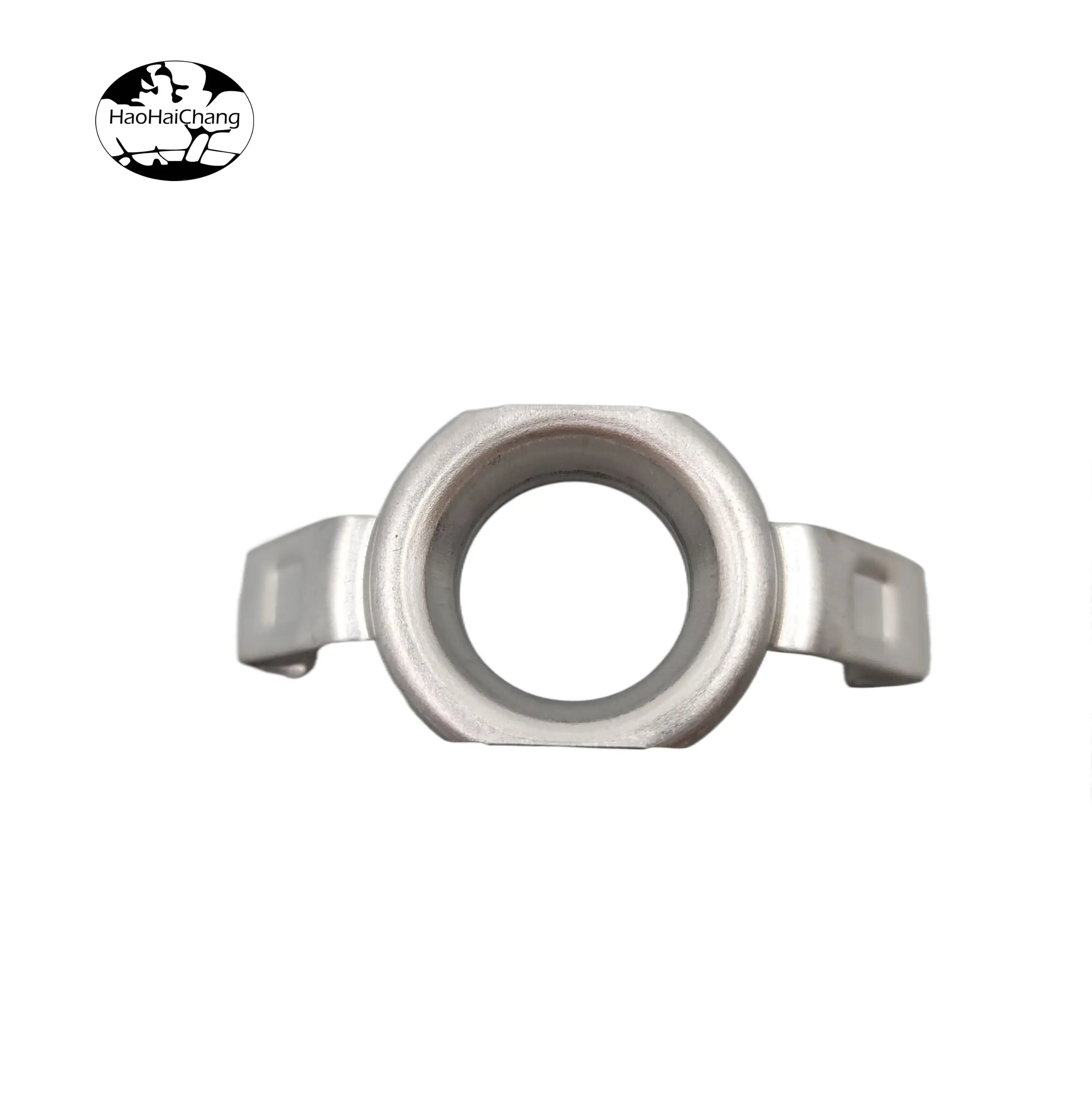

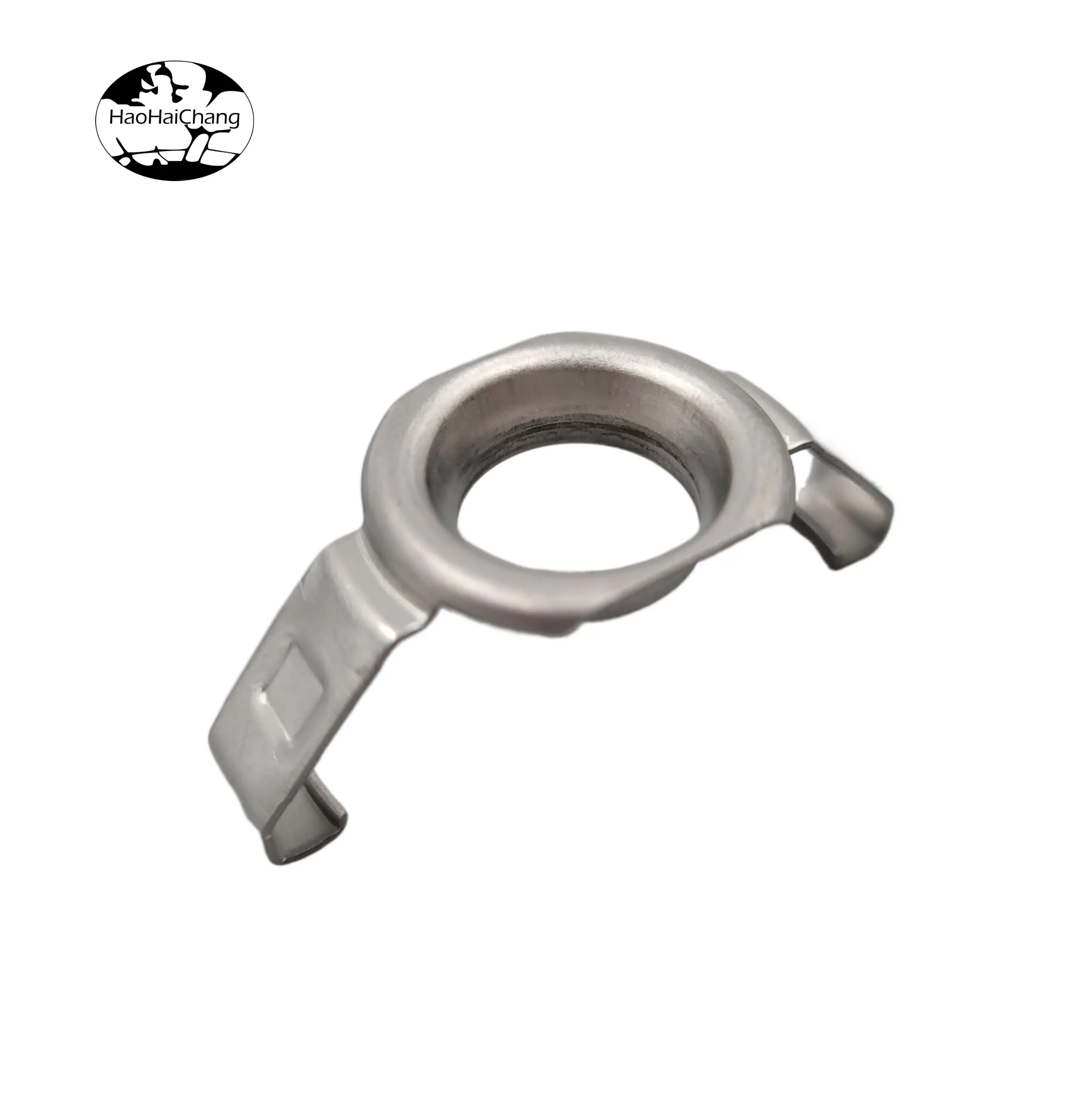

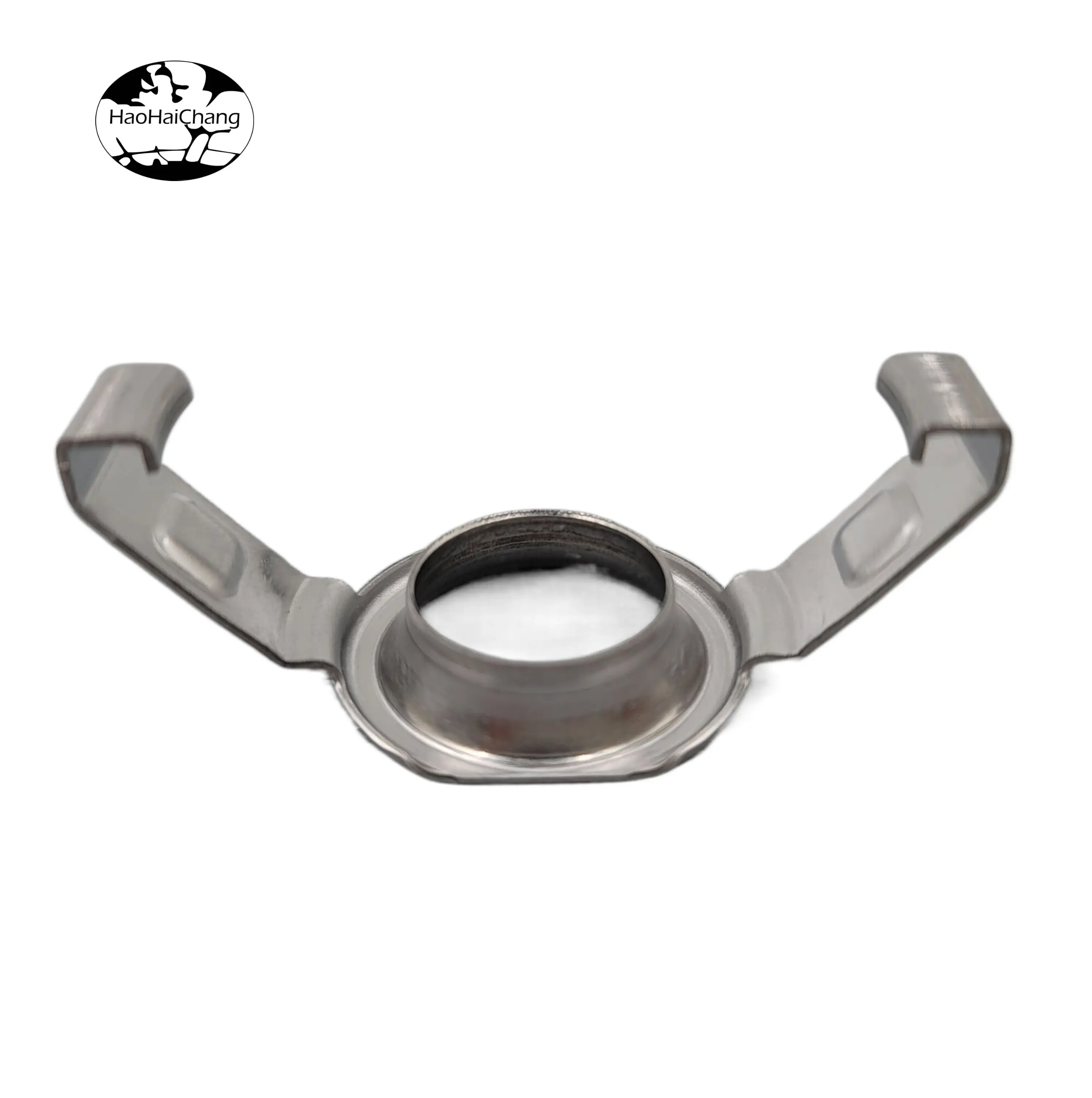

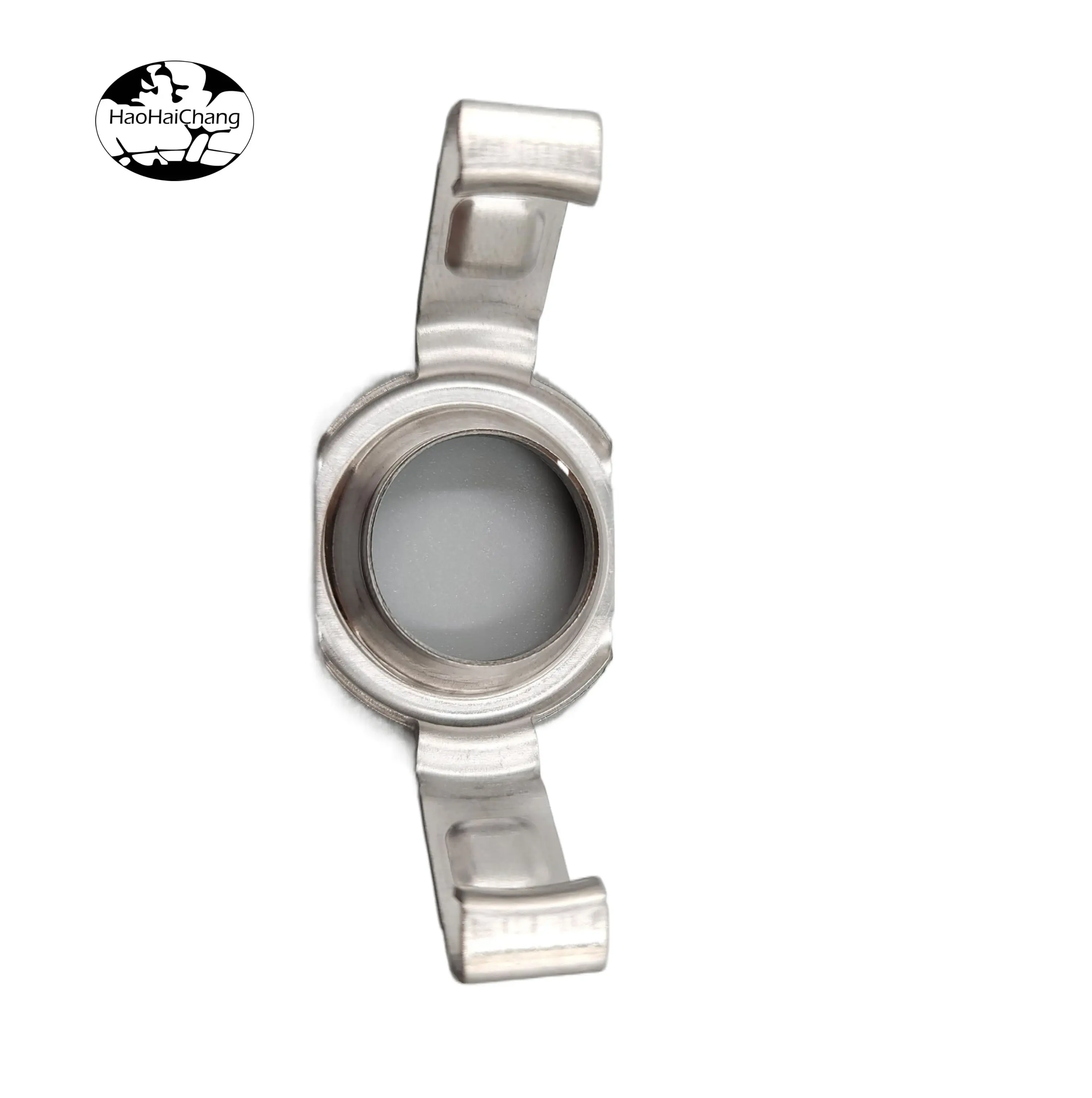

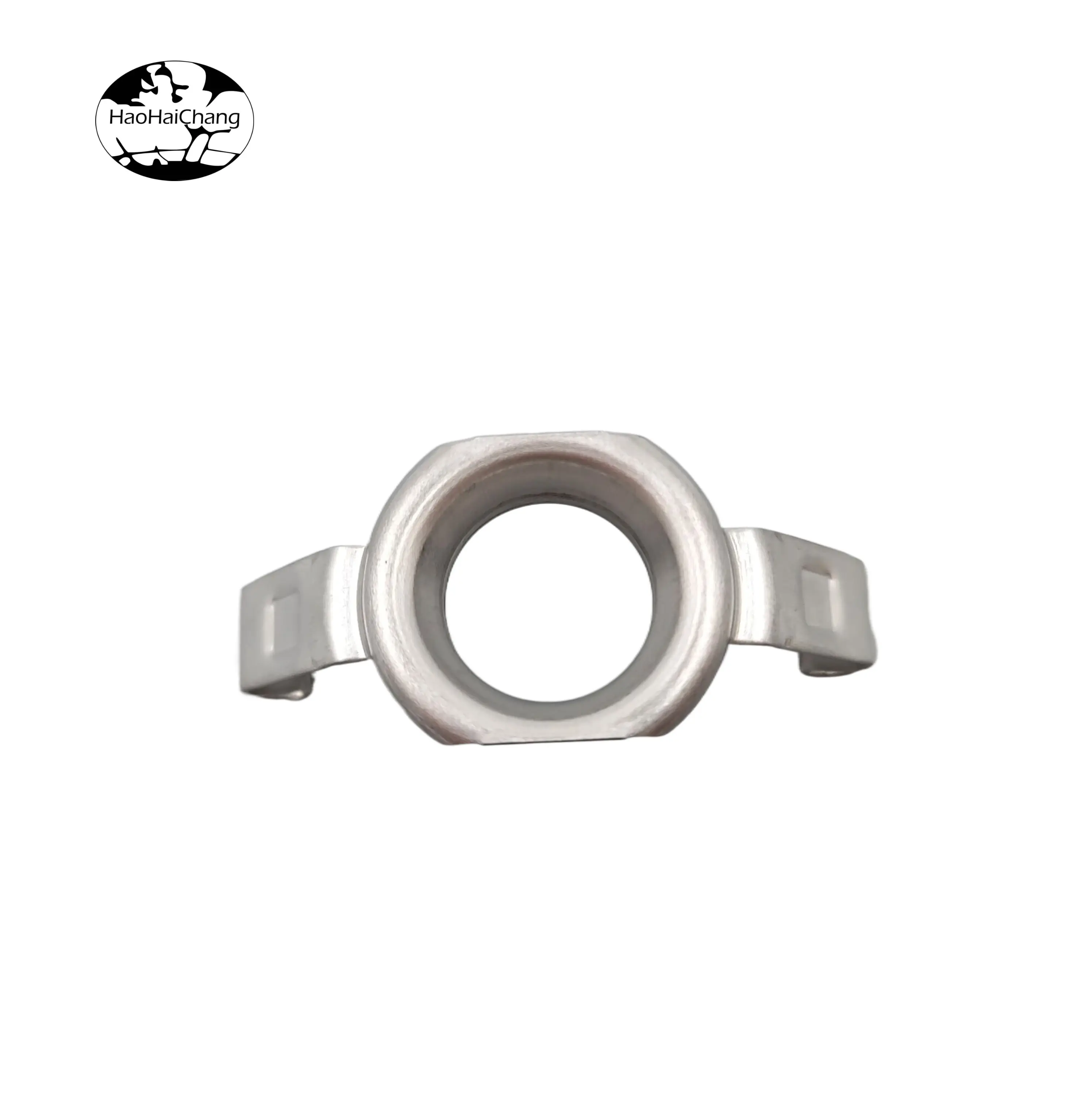

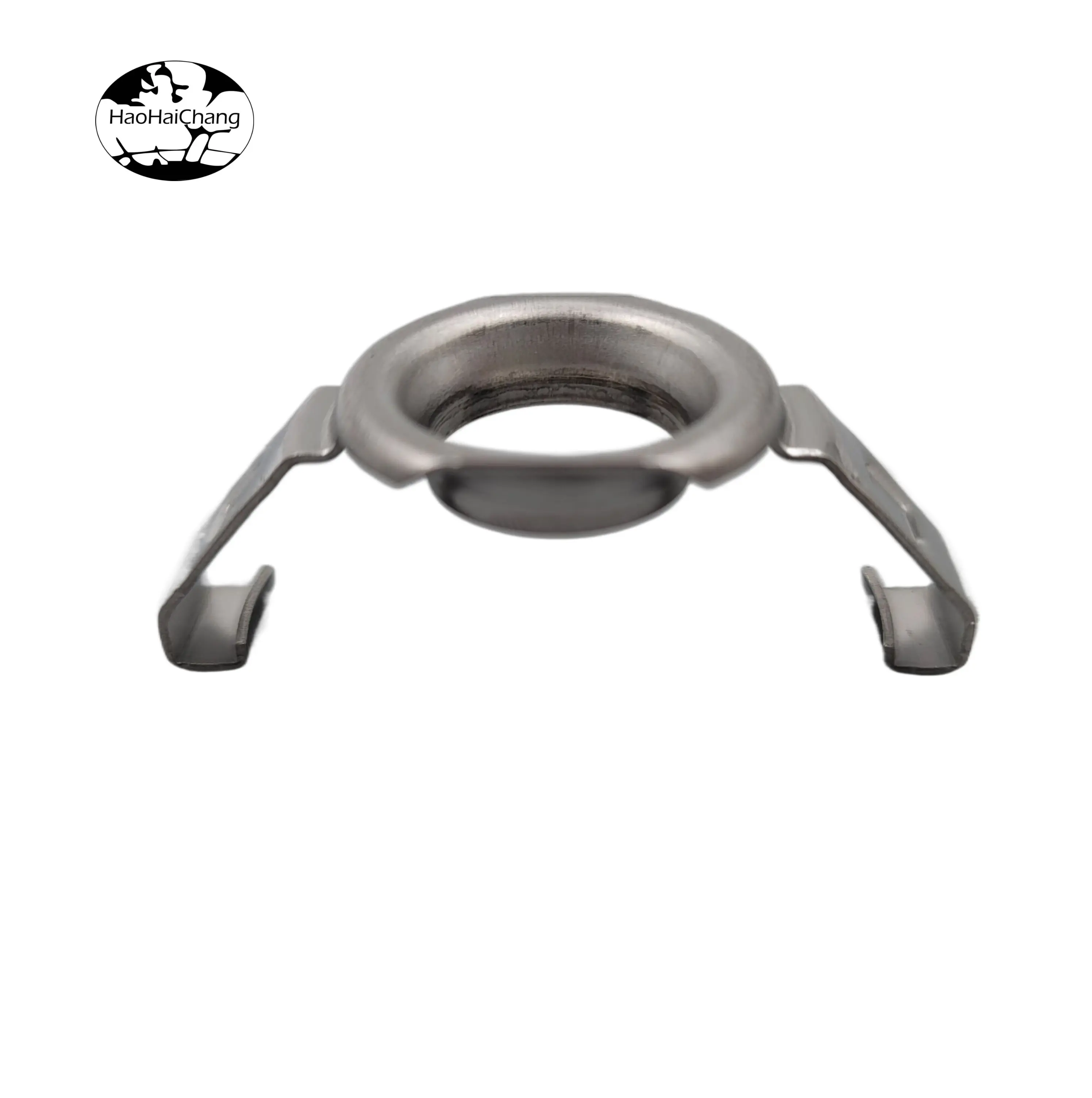

HHC-0354 Stainless Steel Stamping Ring bending double tail metal Bracket Shrapnel

Material:Stainless steel

Process:Stamping

Finish:Cleaning


About HHC-0354 Stainless Steel Stamping Ring bending double tail metal Bracket Shrapnel

We are a precision manufacturer specializing in precision metal hardware components. Allow us to introduce our Stamping Shrapnel product: Brackets. These brackets are designed for use in household appliances, providing robust support and functionality to enhance your appliance's performance.

Feature of HHC-0354 Metal Bracket

                    Items                                                                               Details
Product NameStainless Steel Stamping Ring bending double tail metal Bracket Shrapnel
Standard ComplianceOEM Service
CertificationsIATF16949 2016; ISO9001 2015; ISO14001:2015; RoHS; REACH
Manufacturing ProcessStamping, Bending, Forming
ApplicationsAutomotive Components, Industrial Machinery, Furniture Hardware, Electrical Enclosures
Product TypePrecision Nonstandard Parts (OEM Service)
Material OptionsStainless Steel (e.g. 301, 304, 316)
Packaging DetailsPackaged in plastic bags with VCI paper, then placed in carton boxes with foam padding, or as per clients' specific requirements.
Overall Length Range20mm - 200mm
Ring Diameter Range10mm - 100mm
Tail Length Range5mm - 50mm (each tail)
Material Thickness Range 0.5mm - 3mm
Length and Diameter Tolerance±0.1mm
Thickness±0.03mm
Hardness170-220 HV
Surface FinishRa 0.8-3.2μm
Bend RadiusMinimum 1.5 times material thickness
ColorNatural stainless steel color
Machining CapabilitiesStamping, Bending, Forming, Deburring, Passivation
Special FeaturesRing design with double tail configuration
High corrosion resistance
Good formability and spring-back properties
Customizable ring diameter and tail length
Suitable for various mounting and support applications
Excellent load-bearing capacity

Custom Production Cycles and Export Services of HHC-0354 Metal Bracket

ServicesItemsDetails
Shipping PortShenzhen or Hong Kong
Production Lead TimeQuantity (pieces) 1 - 5,00013 days
Quantity (pieces) > 5,000To be negotiated
Customization ServicesCustomized dimensionsMin. order 100
Special bending anglesMin. order 200
Surface finishing optionsMin. order 300
