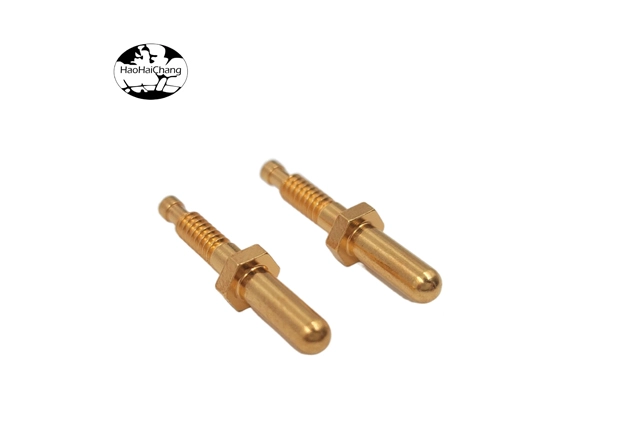

We are a precision manufacturer specializing in precision metal hardware components, and we proudly present our Brass CNC Turning Parts: Copper Pin. Designed for use in household appliance components, this pin is skillfully crafted from high-quality HPB59-2 brass material. It features specifications of Φ6.0(H5.0×22.1×4-40NC)mm, making it an excellent choice for various household appliance applications.
| Items | Details |
| Product Name | Precision Metal Thread Terminal Pin Rod |
| Standard Compliance | OEM Service |
| Thickness | 1-10mm (diameter) |
| Certifications | IATF16949 2016; ISO9001 2015; ISO14001:2015; RoHS; REACH |
| Manufacturing Process | CNC Turning, Threading, Grinding |
| Applications | Electrical Connectors, Automotive Electronics, Industrial Control Systems, Telecommunications Equipment, Medical Devices |
| Product Type | Precision Nonstandard Parts (OEM Service) |
| Material Options | Brass, Copper, Stainless Steel (Customizable) |
| Packaging Details | Packaged in anti-static tubes or trays, then placed in carton boxes, or as per clients' specific requirements. |
| Overall Length Range | 10mm - 200mm |
| Thread Diameter Range | M1 - M10 |
| Thread Pitch | 0.25mm - 1.5mm (Customizable) |
| Unthreaded Shaft Diameter | 1mm - 12mm |
| Tolerance | ±0.01mm |
| Hardness | HV 120-200 (depending on material) |
| Color | Material dependent (e.g., brass yellow, copper red, stainless steel silver) |
| Surface Roughness | Ra 0.2-0.8μm |
| Surface Finish | Polished, Gold Plated, Tin Plated, Nickel Plated (Customizable) |
| Special Features | High precision threading, Excellent electrical conductivity, Corrosion resistant, Customizable head shapes |
| Services | Items | Details |
| Shipping Port | Shenzhen or Hong Kong | |
| Production Lead Time | Quantity (pieces) 1 - 10,000 | 17 days |
| Quantity (pieces) > 10,000 | To be negotiated | |
| Customization Services | Customized logo | Min. order 100 |
| Customized packaging | Min. order 100 | |
| Graphic customization | Min. order 100 |
