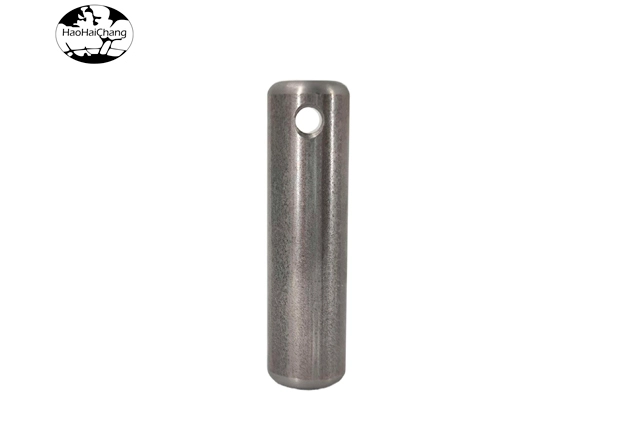

HHC-0673 Shaft Sleeve with Precision Hole

Name: HHC-0673 Shaft Sleeve with Precision Hole
Brand: ShenZhen Haohaichang Industrial Co.,Ltd.
Availability: InStock
Rating: 4.4 (1 reviews)

Material: Carbon Steel

Process: CNC Turning

Finish: Cleaning&Spray anti-rust oil

Inquire Tel Email

About HHC-0673 Shaft Sleeve with Precision Hole

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-0673 Shaft Sleeve with Precision Hole highlights our advanced CNC machining and precision engineering expertise. Using durable materials, we achieve tight tolerances and excellent mechanical strength, ensuring reliable performance in demanding applications. The precision hole design allows for secure fastening and smooth operation, making it ideal for complex mechanical systems. Our team meticulously controls every step of production, from material selection to rigorous testing, to deliver components that meet exacting industry standards. We take pride in providing solutions that enhance the functionality and reliability of your projects.

Feature of HHC-0673 Shaft Sleeve with Precision Hole

Items	Details
Product Name	HHC-0673 Shaft Sleeve with Precision Hole
Standard Compliance	OEM Service
Certifications	IATF16949 2016; ISO9001 2015; ISO14001:2015; RoHS; REACH
Manufacturing Process	CNC Turning, Drilling, Grinding
Applications	Machinery, Automotive, Industrial Equipment, Jigs and Fixtures
Product Type	Precision Nonstandard Parts (OEM Service)
Material Options	Carbon Steel (e.g. AISI 1045, 1060)
Packaging Details:	Individually wrapped in VCI paper, then placed in plastic boxes with dividers, finally packed in carton boxes, or as per clients' specific requirements.
Diameter Range	Φ16(Φ16×60)
Length Range	10mm - 200mm
Hole Diameter Range	1mm - 10mm
Tolerance:Outer Diameter,Length,Hole Diameter	±0.01mm,±0.05mm,±0.02mm
Hardness	20-30 HRC (can be heat treated to 45-55 HRC)
Surface Finish	Ra 0.4-1.6μm
Straightness	0.02mm/100mm
Surface Treatment Options	Spray anti-rust oil,Black oxide, Phosphating, Zinc plating
Color	Natural steel color or as per surface treatment
Machining Capabilities	CNC Turning, Drilling, Grinding, Heat Treatment
Special Features	High precision single hole, Customizable hole position and depth, Good wear resistance, Suitable for various assembly and alignment applications, Heat treatment available for increased hardness

Custom Production Cycles and Export Services of HHC-0673 Shaft Sleeve with Precision Hole

Services	Items	Details
Shipping Port	Shenzhen or Hong Kong
Production Lead Time	Quantity (pieces) 1 - 5,000	12 days
Production Lead Time	Quantity (pieces) > 5,000	To be negotiated
Customization Services	Customized dimensions	Min. order 50
	Special hole configurations	Min. order 100
	Heat treatment	Min. order 20
