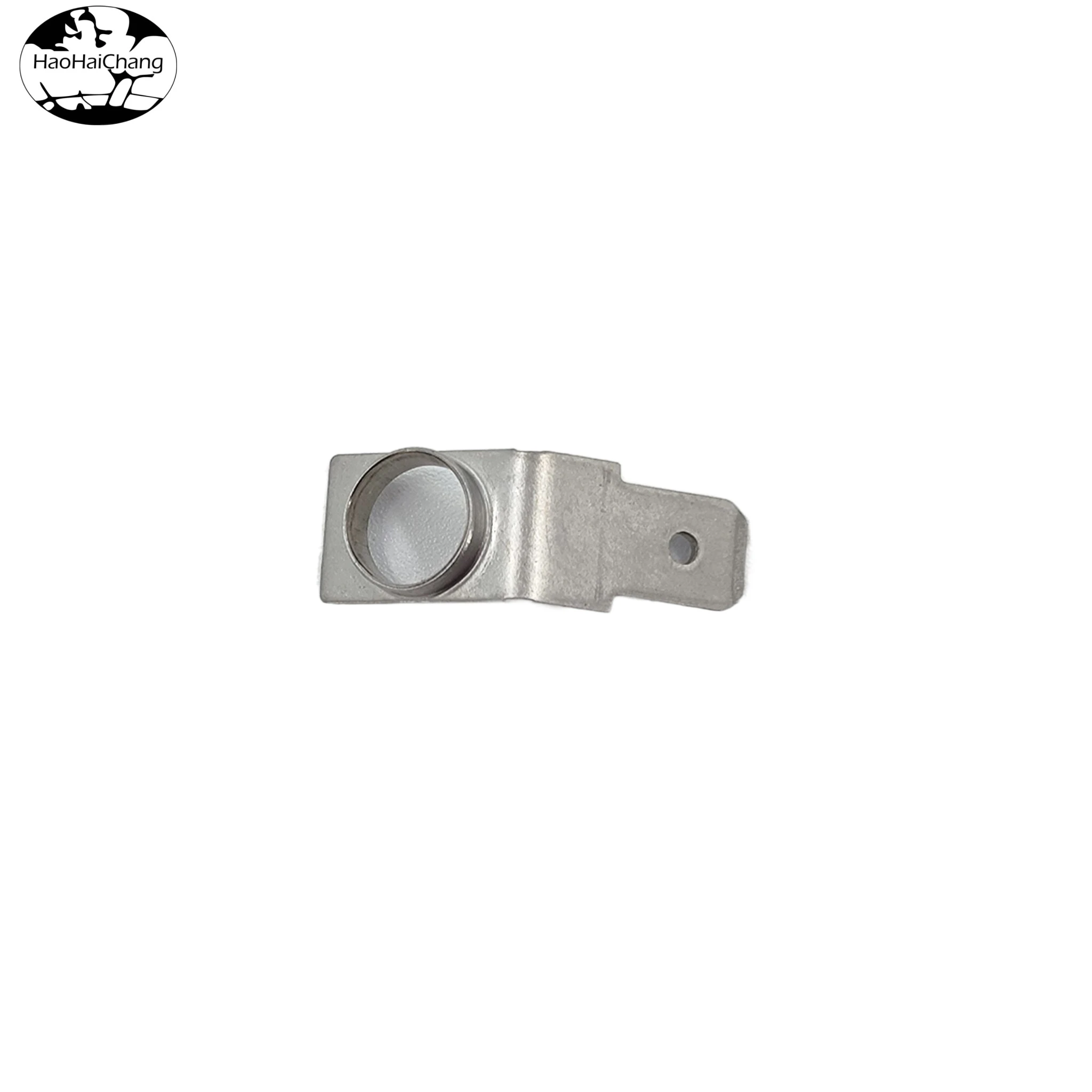

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Allow us to introduce our HHC-637 Grounding Flange Connector, Grounding Lug, Welding Lug, crafted from high-quality 304 stainless steel. Measuring 0.8×58×10 mm, this component is specifically designed for the electric heating tube industry, ensuring reliable performance and durability.
Product Name | HHC-637 Grounding Flange Connector |
Material Options | SUS301 SUS304 SUS316 |
Diameter Range | 6mm - 12mm (mounting holes) |
Length Range | 20mm - 25mm |
Thickness | 1.0mm - 1.2mm |
Tolerance | ±0.01 mm |
Hardness | HV180-200 |
Color: | Silver metallic |
Manufacturing Process | Stamping, Bending, Surface treatment |
Machining Capabilities | Stamping Threading Bending Welding preparation Surface finishing |
Applications | Electrical grounding connections, Welding equipment connections, Industrial machinery grounding, Metal structure connections |
Certifications | IATF16949:2016 ISO9001:2015 ISO13485:2016 ISO14001:2015 AS9131D |
Packaging Details | Packaged in plastic bags then placed in carton boxes or as per clients' specific requirements |
| Shipping Port | Shenzhen or Hong Kong |
| Production Lead Time | |
| Quantity (pieces) 1 - 10,000 | 10 days |
| Quantity (pieces) > 10,000 | To be negotiated |
| Customization Services | |
| Customized logo | Min. order 100(pieces) |
| Customized packaging | Min. order 100(pieces) |
| Graphic customization | Min. order 100(pieces) |
| Items | Details |
| Product Name | Stainless Steel M3 Flip-Hole Welding Lug Grounding Terminal Lug |
| Standard Compliance | OEM Service |
| Certifications | IATF 16949:2016; ISO 9001:2015; ISO 14001:2015; RoHS; REACH |
| Manufacturing Process | Precision Stamping, Welding |
| Applications | Electrical grounding, Earthing systems, Shielding in electronic assemblies, Power distribution equipment |
| Product Type | Standard and Custom Grounding Terminals |
| Material | Stainless Steel (e.g. 304, 316L) |
| Finish | Natural Stainless Steel or Passivated |
| Features | Flip-hole design for easy cable attachment |
| Suitable for welding to ground planes or chassis | |
| Provides low electrical resistance for effective grounding | |
| Specifications | |
| Barrel Diameter | 4.0 - 6.0 mm (depending on design) |
| Lug Length | 8.0 - 12.0 mm (excluding wire hole) |
| Wire Hole Diameter | 2.5 - 3.0 mm |
| Material Thickness | 0.5 - 1.0 mm |
| Current Rating | Up to 25A (depending on wire size and application) |
| Surface Finish | Ra ≤ 1.6 µm |
| Tolerance | |
| Length & Width | ±0.1 mm |
| Thickness | ±0.05 mm |
| Hole Diameter | ±0.1 mm |
| Packaging | Bulk packed in boxes, or tape & reel for high volume applications, or as per customer requirements. |
| Services | Items | Details |
| Shipping Port | Shenzhen or Hong Kong | |
| Production Lead Time | Quantity (pieces) 1 - 10,000 | 16 days |
| Quantity (pieces) > 10,000 | To be negotiated | |
| Customization Services | Customized logo | Min. order 5000 |
| Customized packaging | Min. order 5000 | |
| Graphic customization | Min. order 5000 |
| Items | Details |
| Product Name | Stainless Steel M3 Flip-Hole Welding Lug Grounding Terminal Lug |
| Standard Compliance | OEM Service |
| Certifications | IATF 16949:2016; ISO 9001:2015; ISO 14001:2015; RoHS; REACH |
| Manufacturing Process | Precision Stamping, Welding |
| Applications | Electrical grounding, Earthing systems, Shielding in electronic assemblies, Power distribution equipment |
| Product Type | Standard and Custom Grounding Terminals |
| Material | Stainless Steel (e.g. 304, 316L) |
| Finish | Natural Stainless Steel or Passivated |
| Features | |
| F | l |
| S | u |
| P | r |
| Specifications | |
| Barrel Diameter | 4.0 - 6.0 mm (depending on design) |
| Lug Length | 8.0 - 12.0 mm (excluding wire hole) |
| Wire Hole Diameter | 2.5 - 3.0 mm |
| Material Thickness | 0.5 - 1.0 mm |
| Current Rating | Up to 25A (depending on wire size and application) |
| Surface Finish | Ra ≤ 1.6 µm |
| Tolerance | |
| Length & Width | ±0.1 mm |
| Thickness | ±0.05 mm |
| Hole Diameter | ±0.1 mm |
| Packaging | |
| B | u |
| Services | Items | Details |
| Port | Shenzhen or Hong Kong | |
| Lead time | Quantity (pieces) 1 - 10,000: 16 days | To be negotiated |
| Lead time | Quantity (pieces) > 10,000: To be negotiated | To be negotiated |
| Customization | Customized logo: Min. order 5000 | Min. order |
| Customized packaging: Min. order 5000 | Min. order | |
| Graphic customization: Min. order 5000 | Min. order |
